CK45 High Strength Induction Hardened Rod For Heavy Machine Length 1m - 8m

CK45 High Strength Induction Hardened Rod For Heavy Machine Length 1m - 8m
CK45 High Strength Induction Hardened Rod For Heavy Machine Length 1m - 8m CK45 High Strength Induction Hardened Rod For Heavy Machine Length 1m - 8m

Duży Obraz :  CK45 High Strength Induction Hardened Rod For Heavy Machine Length 1m - 8m

Szczegóły Produktu:

Miejsce pochodzenia: China
Nazwa handlowa: HY
Orzecznictwo: ISO9001:2008

Zapłata:

Minimalne zamówienie: 5 tons
Cena: Negotiation
Szczegóły pakowania: Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Czas dostawy: 30days
Zasady płatności: L/C, T/T
Możliwość Supply: 30tons a day
Szczegółowy opis produktu
Średnica: 6mm - 1000mm Długość: 1000mm - 8000mm
Wytrzymałość na rozciąganie: Nie mniej niż 610 N/MM2 Siła uzysku: Nie mniej niż 355 N/MM2
Twardość indukcyjna: HRC50-60 Prostota: Nie więcej niż 0,2 MM/M
High Light:

hartowany pręt stalowy

,

hartowany indukcyjnie pręt chromowany

,

pręt hartowany indukcyjnie do ciężkich maszyn

High Strength Hydraulic Piston Rod Induction Hardened For Mining





Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Ground and chrome plated

3. ISO9001:2008

4. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened

5. Application: Mining machinery industry, textile / printing industry and so on

6. Case depth:1.5mm - 2.5mm  Induction hardness:HRC50 - 60





Detailed Description

1.CHEMICAL COMPOSITION

Material

C%

Mn%

Si%

S%

P%

V%

Cr%

Ck45

0.42-0.50

0.50-0.80

0.04

0.035

0.035





ST52

0.22

1.6

0.55

0.035

0.04





20MnV6

0.16-0.22

1.30-1.70

0.10-0.50

0.035

0.035

0.10-0.20



42CrMo4

0.38-0.45

0.60-0.90

0.15-0.40

0.03

0.03



0.90-1.20

40Cr

0.37-0.45

0.50-0.80

0.17-0.37







0.80-1.10



2.MECHANCIAL PROPERTIES

Material

T.S  N/MM2

Y.S  N/MM2

E%(MIN)

CHARPY

CONDITION

CK45

610

355

15

>41J

NORMALIZE

CK45

800

630

20

>41J

Q + T

ST52

500

355

22



NORMALIZE

20MnV6

750

590

12

>40J

NORMALIZE

42CrMo4

980

850

14

>47J

Q + T

40Cr

1000

800

10



Q + T



3. SUPPLY CONDITION

    Ground  and  chrome plated

4. CHROME THICKNESS

     20 to 30 micron

5. SURFACE ROUGHNESS

     Ra≤0.2 micron and  Rt≤2 micro

6. TOLERANCES ON DIA

    ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

   ≤0.2MM/M

9. SURFACE HARDNESS

   850-1150HV (vickers 100g)

10.COHESION

   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

    in water)

11 .POROSITY

     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

     Test in natural salt spray according to ASTM B 117-72hours

     Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

      Good

14. PACKING

     Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

     All certificate related with material heat treatment and plating is required



We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!

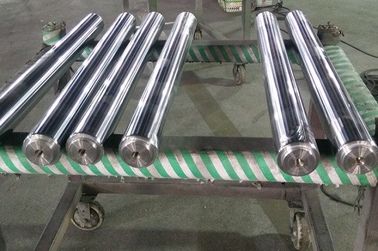

CK45 High Strength Induction Hardened Rod For Heavy Machine Length 1m - 8m 0

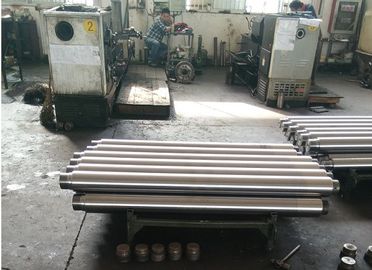

CK45 High Strength Induction Hardened Rod For Heavy Machine Length 1m - 8m 1
